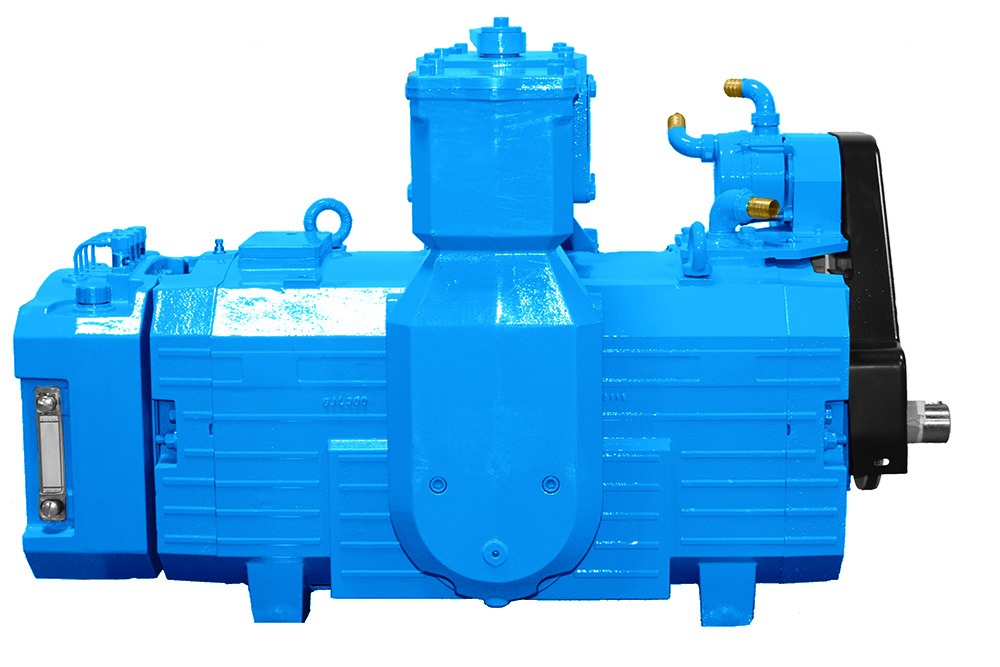

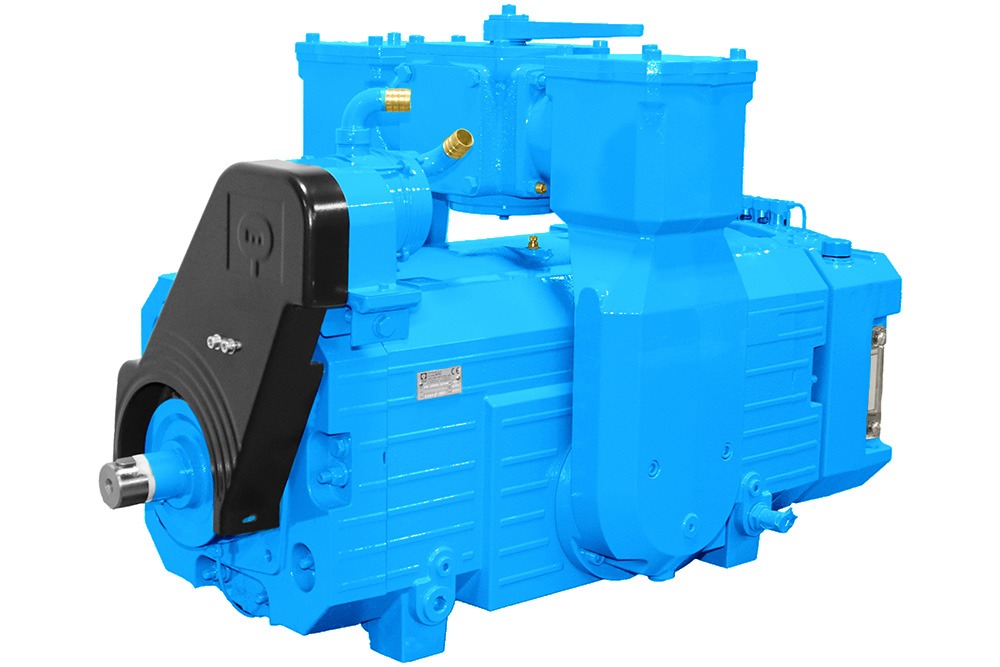

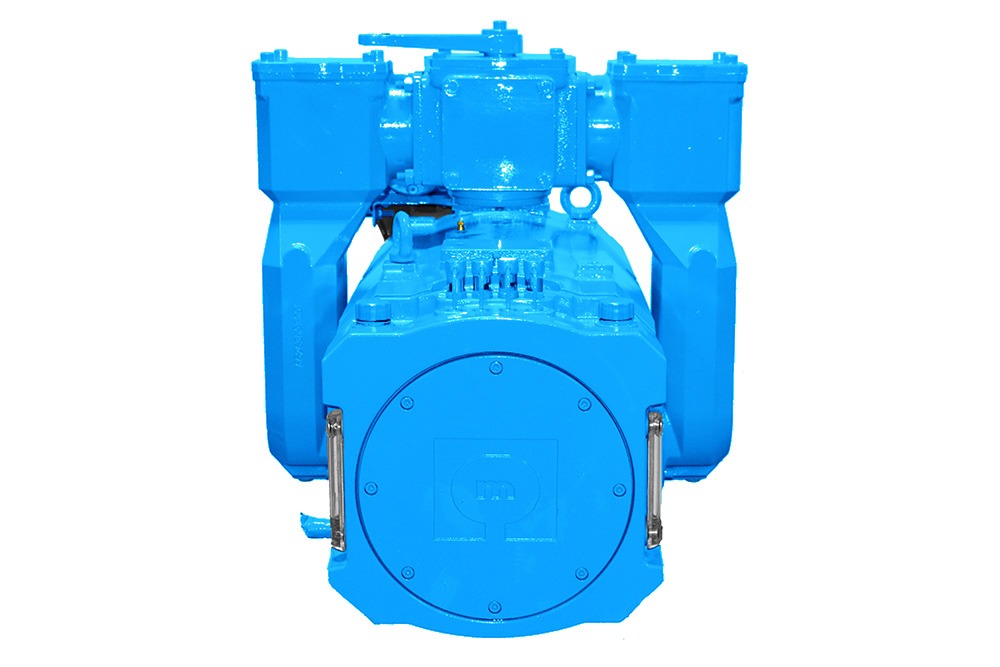

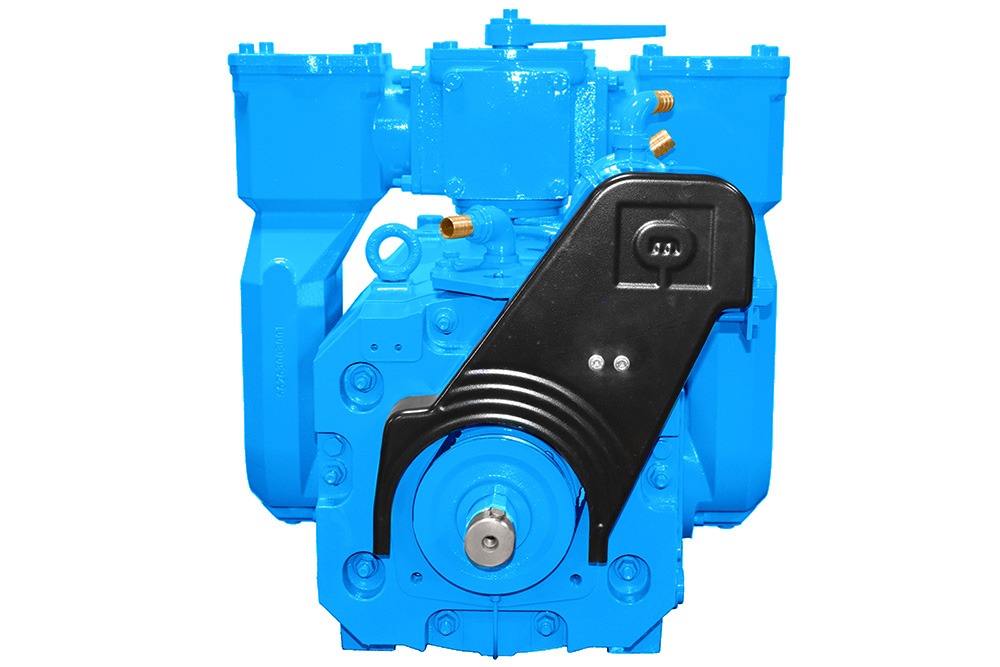

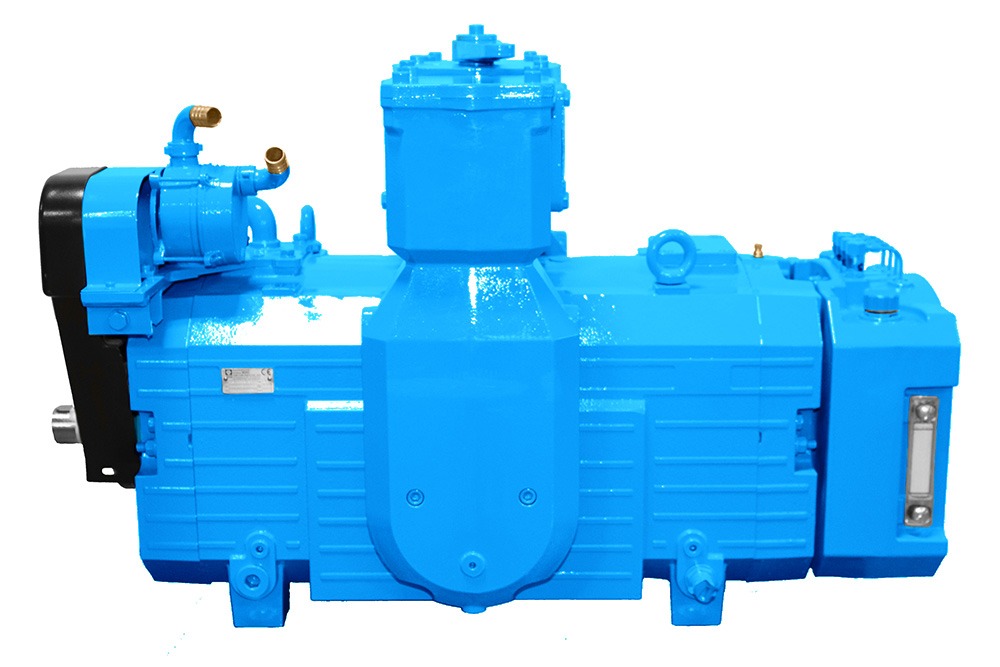

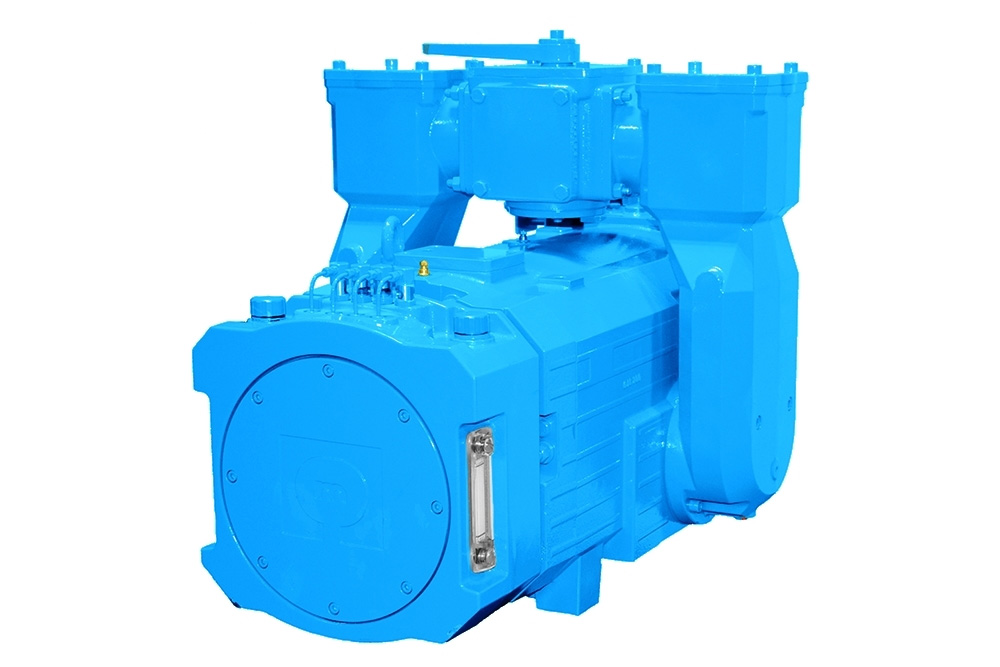

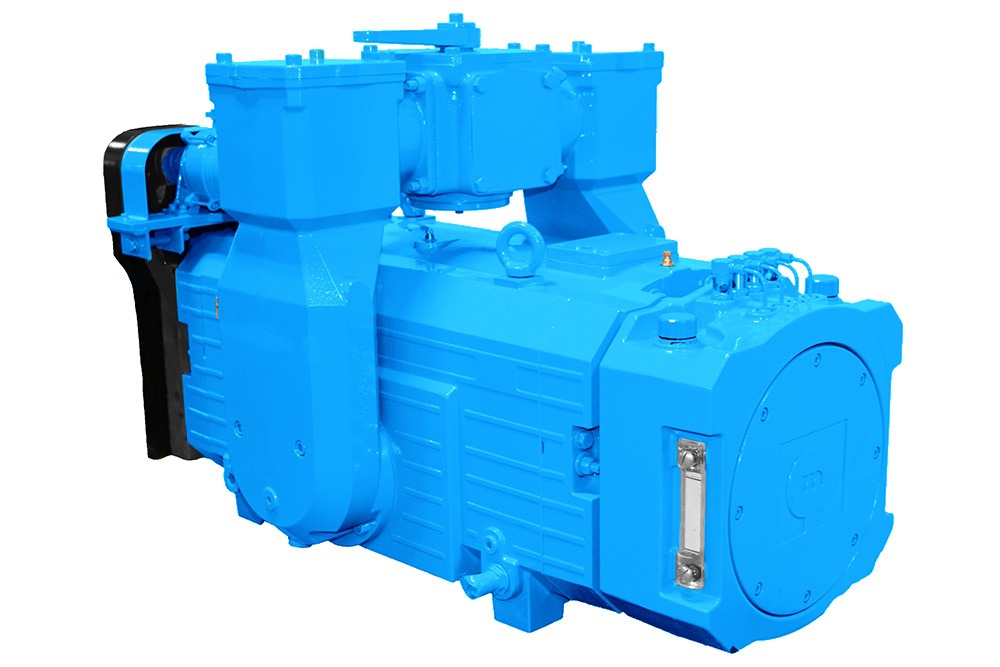

Moro liquid cooled vacuum pumps are recommended for heavy duty continuous use applications. Some models have a unique liquid cooling system for the rotor, maintaining cooler temperatures inside the pump. Plus, the principle of positive displacement rotary vanes guarantees a high degree of vacuum, making Moro liquid cooled pumps ideal for industrial use.
CCW rotation: 6.211004630-1
CW rotation: 6.211004650-1
Recommended for heavy duty continuous use applications.
Product #: 6.211004630-1
$13,875.00Ships in 1 to 2 business days.
FEATURES
| Specification | Unit | Value |
| Free air capacity | cfm | 833 |
| Air capacity at 15" Hg/50% vacuum | cfm | 706 |
| Max. Vacuum | Hg (in.) | 28 |
| Max. Pressure | psig | 29 |
| Power required at 15" of vacuum | hp | 33.5 |
| Power required at max. pressure | hp | 77.7 |
| Rotation speed | rpm | 1200 |
| Oil tank capacity | quart(us) | 13.2 |
| Oil consumption | gal (US)/Hr | 0.066 |
| Sound pressure at 7 meters (23 ft) 60% vacuum | dB | 76 |
| Hose | in | - |
| Flange | in | 4 |
| Weight | lbs | 1034 |
| R.P.M. | Free Air Flow | Performance @15" Hg. | Continuous Vacuum | Suggested Tank Size |
| 1200 | 824 | 706 | 24" | 3000-4000 Gallons |
Moro PM2000 - Owners Manual
