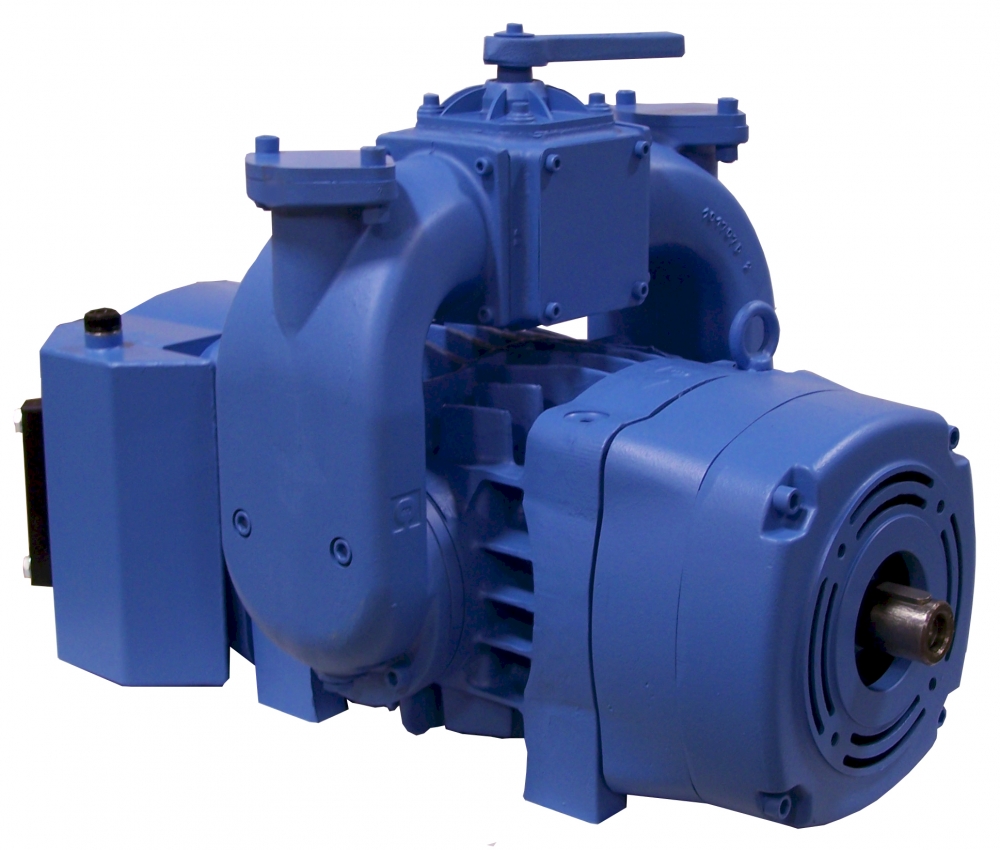

Moro M100T 460 CFM Fan Cooled Pump

Moro fan cooled vacuum pumps are designed and built for low maintenance, long life and trouble-free service for tough industrial applications.

CCW rotation: Part#: 6.211000020-1
CW rotation: Part#: 6.211000030-1

Product #: 6.211000020-1

$7,193.00
Please call Stahly to place order.
Call for price (309) 820-7300

Ships in 1 to 2 business days.

Customers Also Viewed

Features
Manual

FEATURES

Heavy duty fan-cooled design for tough industrial applications
Continuous pumping duty
No expensive cooling system
No risk to truck cooling system
No need to run water lines to truck cooling system
Low rotating speeds lead to longer pump life
Integrated check valve, change-over valve and oiling system allow for ease-of-use and installation
Kevlar Vanes
Field proven superior pump life
Industrial duty Viton oil seals for longer pump life

Specification	Unit	Value
Free air capacity	cfm	460
Air capacity at 15" Hg/50% vacuum	cfm	388
Max. Vacuum	Hg (in.)	28
Max. Pressure	psig	29
Power required at 15" of vacuum	hp	17
Power required at max. pressure	hp	42
Rotation speed	rpm	1500
Oil tank capacity	quart(us)	5.28
Oil consumption	gal (US)/Hr	0.0211
Sound pressure at 7 meters (23 ft) 60% vacuum	dB	79
Hose	in	-
Flange	in	4
Weight	lbs	550

R.P.M.	Free Air Flow	Performance @15" Hg.	Continuous Vacuum	Suggested Tank Size
1500	460 cfm	388	24" Hg	2000-6000 Gallons

Moro 100T - Owners Manual
