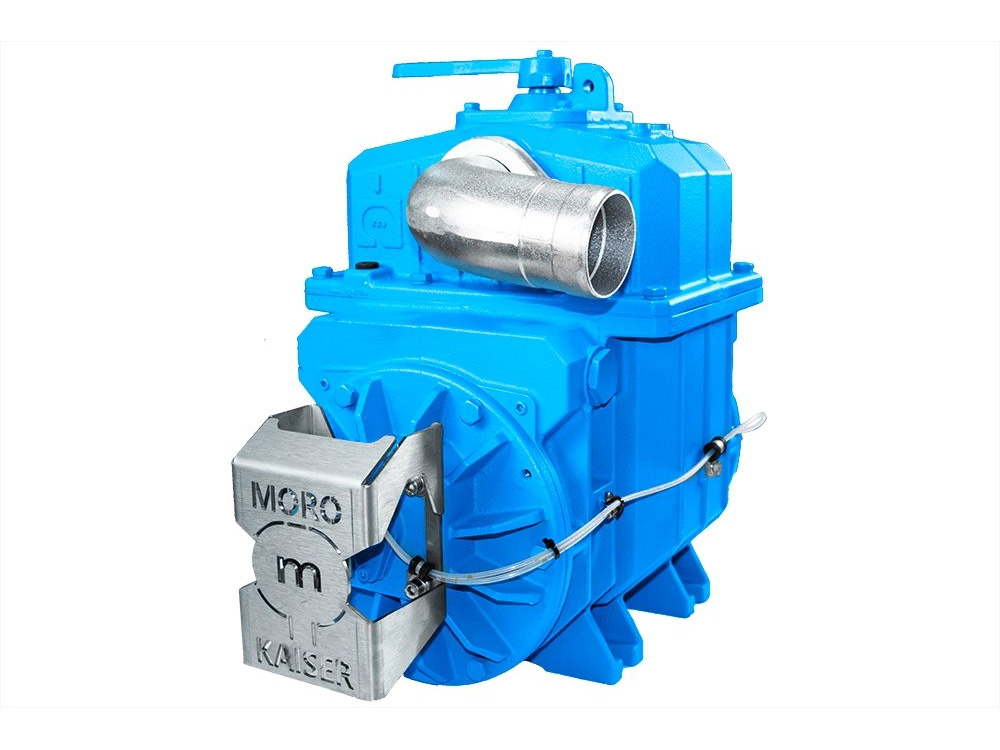

Moro PM80A 424 CFM Air Cooled Pump

Moro PM80A 424 CFM Air Cooled Pump

Moro air cooled vacuum pumps are designed and built for low maintenance, long life and trouble-free service. Air cooled vacuum pumps are used in a variety of industries and field applications to pump any noncombustible liquid.

CCW rotation: Part#: 6.211003460-1
CCW rotation: Part#: 6.211003470-1

Industrial duty bearings, seals and low operating speed. Available in 3 models.

$3,200.00 USD

Product #: 6.211003460-1



Ships in 1 to 2 business days.

Customers Also Viewed

FEATURES

  • Large, open ported manifold, design reduces noise and air friction
  • High performance, Kevlar vanes with visual inspection ports in casing
  • High quality Viton oil seals - longer life than traditional oil seals
  • Low rotating speed leads to longer pump life
  • Sealed bearings - no grease points
  • 29 psi positive pressure capability
  • Direct feed, sealed oiling system
Specification Unit Value
Free air capacity cfm 424
Air capacity at 15" Hg/50% vacuum cfm 312
Max. Vacuum Hg (in.) 28
Max. Pressure psig 29
Power required at 15" of vacuum hp 15.5
Power required at max. pressure hp 41
Rotation speed rpm 1100
Oil tank capacity quart(us) 4
Oil consumption gal (US)/Hr 0.05
Sound pressure at 7 meters (23 ft) 60% vacuum dB 79
Hose in 3
Flange in -
Weight lbs 357
R.P.M. Free
Air Flow
Performance
@15" Hg.
Suggested
Tank Size
1400 417 cfm 312 cfm 1000-3000 Gallons
1250 372 cfm 279 cfm
*1100 328 cfm 245 cfm

*Recommended R.P.M.
