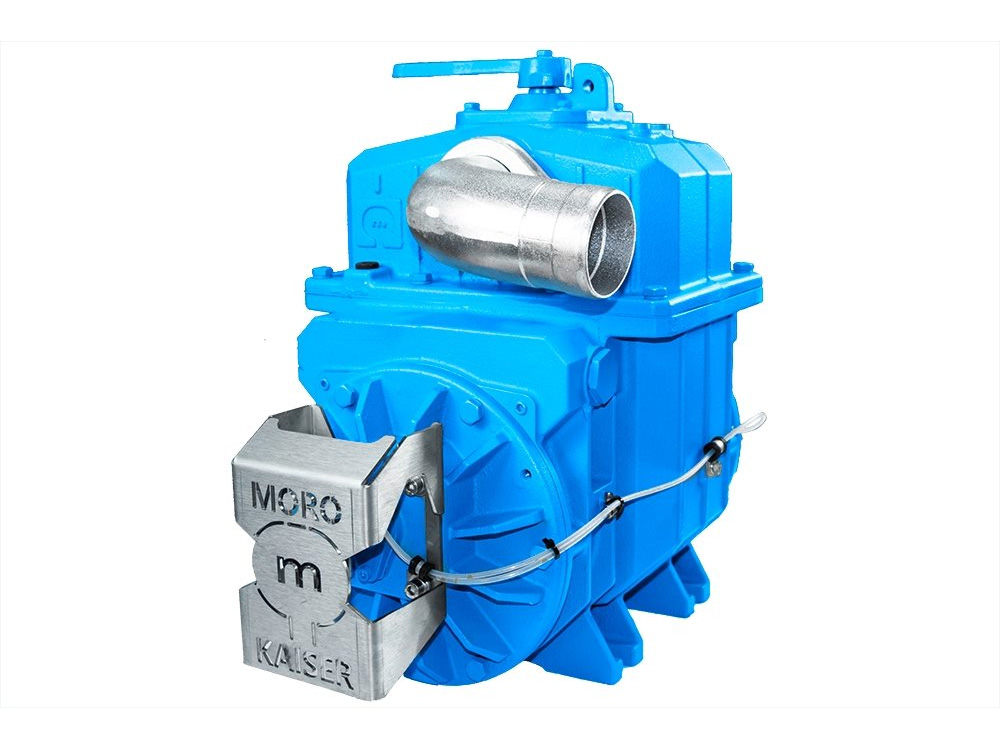

Moro PM60A 254 CFM Air Cooled Pump

Moro PM60A 254 CFM Air Cooled Pump

The Moro PM60A air cooled vacuum pump is used in small industrial applications. The PM60A can be easily mounted on a truck frame and connected to the truck drive system. The PM60A has a cast iron body and employs radial rotary Kevlar vanes to provide vacuum/pressure and a direct feed sealed oiling system.

The PM60A produces free air flow of 254 cfm at 1400 rpm.

CCW rotation, 1100 RPM: Part#: 6.211003400-1
CCW rotation, 1100 RPM: Part#: 6.211003410-1
CCW rotation, 540 RPM: Part#: 6.211003410-1

$2,526.00 USD

Product #: 6.211003400-1



Ships in 1 to 2 business days.

Customers Also Viewed

FEATURES

  • Large, open ported manifold, design reduces noise and air friction
  • High performance, Kevlar vanes with visual inspection ports in casing
  • High quality Viton oil seals - longer life than traditional oil seals
  • Low rotating speed leads to longer pump life
  • Sealed bearings - no grease points
  • 29 psi positive pressure capability
  • Direct feed, sealed oiling system
Specification Unit Value
Free air capacity cfm 254
Air capacity at 15" Hg/50% vacuum cfm 189
Max. Vacuum Hg (in.) 28
Max. Pressure psig 29
Power required at 15" of vacuum hp 10
Power required at max. pressure hp 29
Rotation speed rpm 1100
Oil tank capacity quart(us) 4
Oil consumption gal (US)/Hr 0.042
Sound pressure at 7 meters (23 ft) 60% vacuum dB 77
Hose in 3
Flange in -
Weight lbs 265
R.P.M. Free
Air Flow
Performance
@15" Hg.
Continuous
Vacuum
Suggested
Tank Size
1400 252 cfm 189 cfm 24" Hg 500-2500 Gallons
1250 225 cfm 169 cfm
*1100 198 cfm 149 cfm

*Recommended R.P.M.
