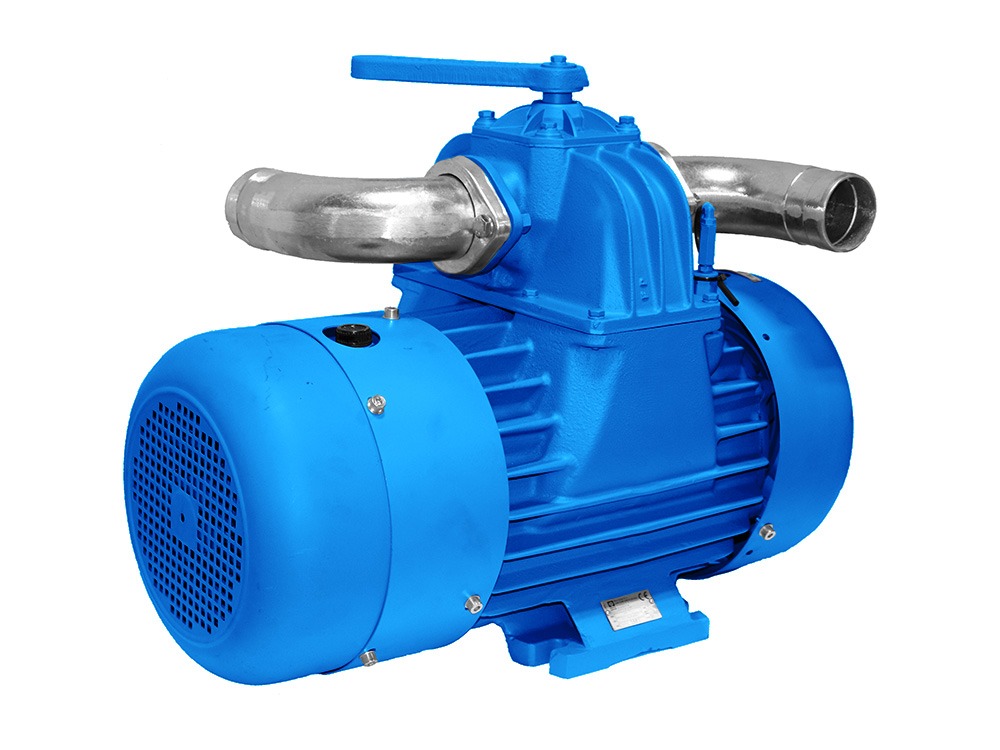

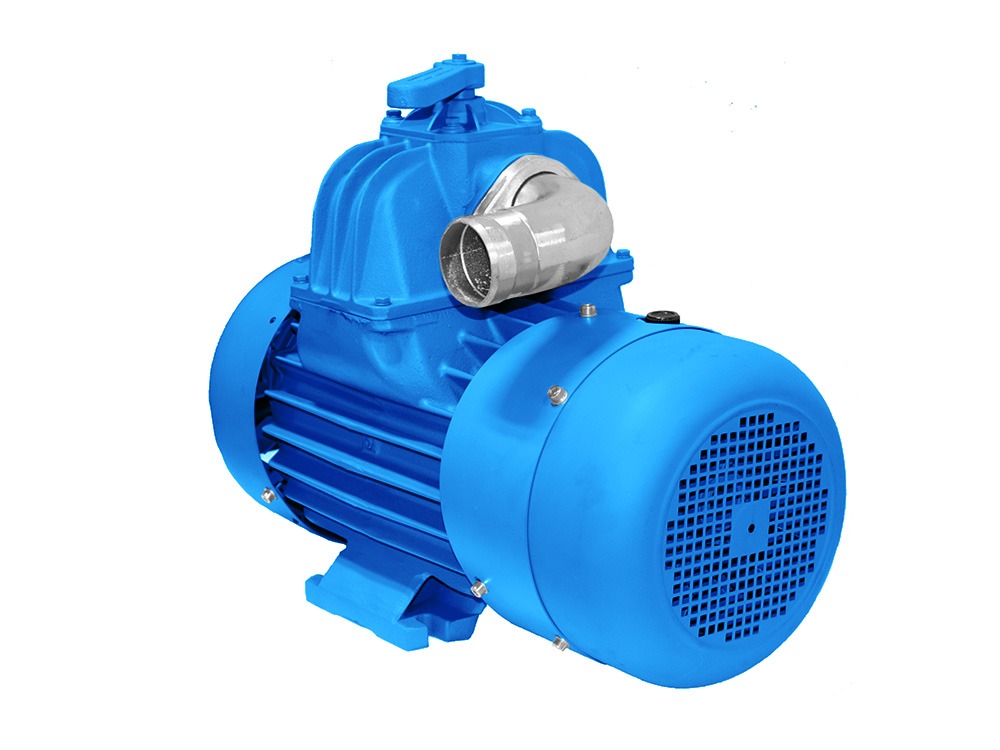

Moro PM70T 292 CFM Fan Cooled Pump

Moro fan cooled vacuum pumps are designed and built for low maintenance, long life and trouble-free service for tough industrial applications.

CCW rotation: Part#: 6.211002580-1
CW rotation: Part#: 6.211002570-1

$3,957.00 USD

Product #: 6.211002580-2

Ships in 1 to 2 business days.

Customers Also Viewed

Features
Manual

FEATURES

Heavy duty dual fan-cooled design for tough industrial application
High quality Viton oil seals equals a longer life than traditional oil seals
Continuous pumping duty
No expensive cooling system, no risk to truck cooling system and no need to run water lines to truck cooling system
Integrated check valve, change-over valve and oiling system allow for ease-of-use and installation
Low rotating speeds lead to longer pump life
3" Ports

Specification	Unit	Value
Free air capacity	cfm	292
Air capacity at 15" Hg/50% vacuum	cfm	241
Max. Vacuum	Hg (in.)	28
Max. Pressure	psig	21.7
Power required at 15" of vacuum	hp	9
Power required at max. pressure	hp	20
Rotation speed	rpm	1100
Oil tank capacity	quart(us)	3.6
Oil consumption	gal (US)/Hr	0.047
Sound pressure at 7 meters (23 ft) 60% vacuum	dB	76
Hose	in	3
Flange	in	-
Weight	lbs	350

R.P.M.	Free Air Flow	Performance @15" Hg.	Continuous Vacuum	Suggested Tank Size
1100	247 cfm	212 cfm	24" Hg	500-2500 Gallons

*Recommended R.P.M.

Moro PM70T - Owners Manual
