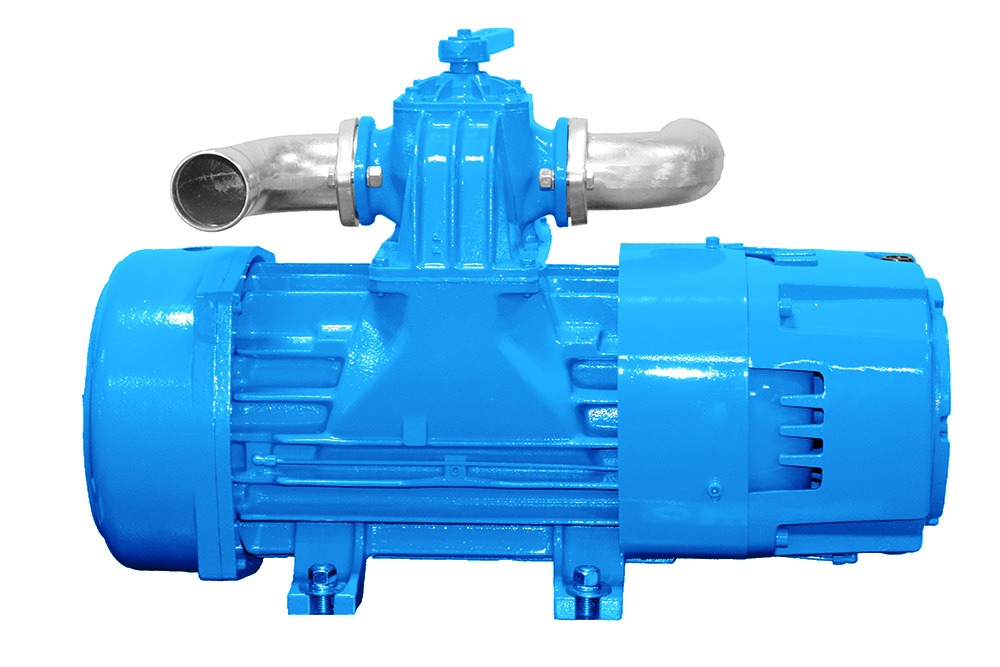

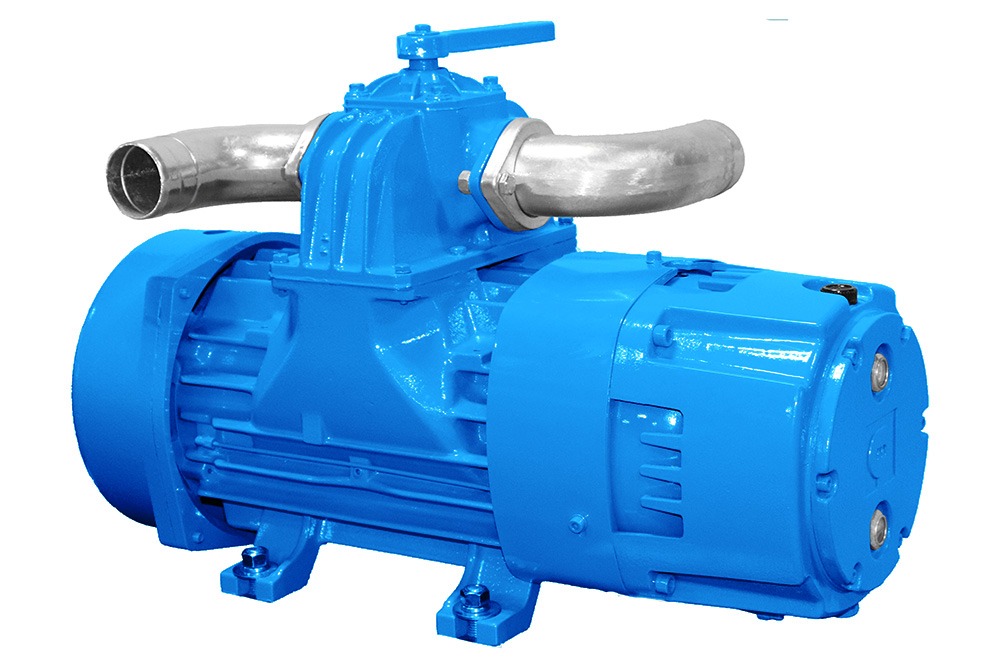

Moro PM80T 414 CFM Fan Cooled Pump

Moro fan cooled vacuum pumps are designed and built for low maintenance, long life and trouble-free service for tough industrial applications.

CCW rotation: Part#: 6.10081289-1
CW rotation: Part#: 6.10081341-1

$4,529.00 USD

Product #: 6.211005090-1

Ships in 1 to 2 business days.

Customers Also Viewed

Features
Manual

FEATURES

Heavy duty fan-cooled design for tough industrial applications
Continuous pumping duty
No expensive cooling system
No risk to truck cooling system
No need to run water lines to truck cooling system
Low rotating speeds lead to longer pump life
Integrated check valve, change-over valve and oiling system allow for ease-of-use and installation
Kevlar Vanes
Field proven superior pump life
Industrial duty Viton oil seals for longer pump life

Specification	Unit	Value
Free air capacity	cfm	414
Air capacity at 15" Hg/50% vacuum	cfm	270
Max. Vacuum	Hg (in.)	28
Max. Pressure	psig	29
Power required at 15" of vacuum	hp	11
Power required at max. pressure	hp	35
Rotation speed	rpm	1100
Oil tank capacity	quart(us)	4.8
Oil consumption	gal (US)/Hr	0.063
Sound pressure at 7 meters (23 ft) 60% vacuum	dB	78
Hose	in	3
Flange	in	-
Weight	lbs	400

R.P.M.	Free Air Flow	Performance @15" Hg.	Continuous Vacuum	Suggested Tank Size
1100	350 cfm	270 cfm	24" Hg	1000-4000 Gallons

*Recommended R.P.M.

Moro PMA - Owners Manual
