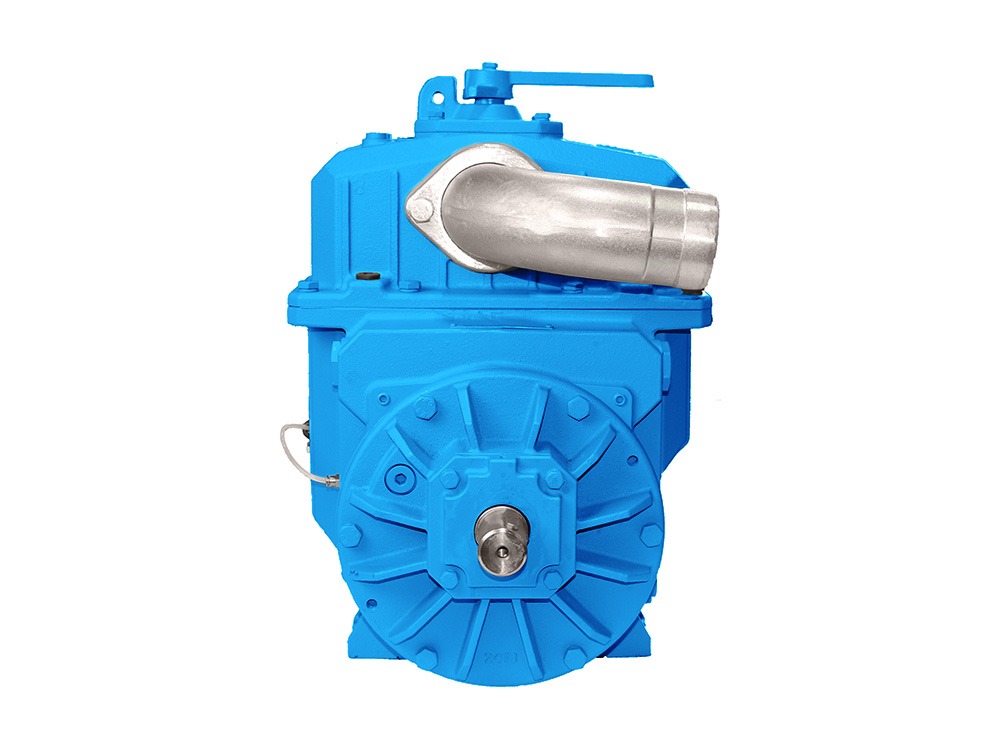

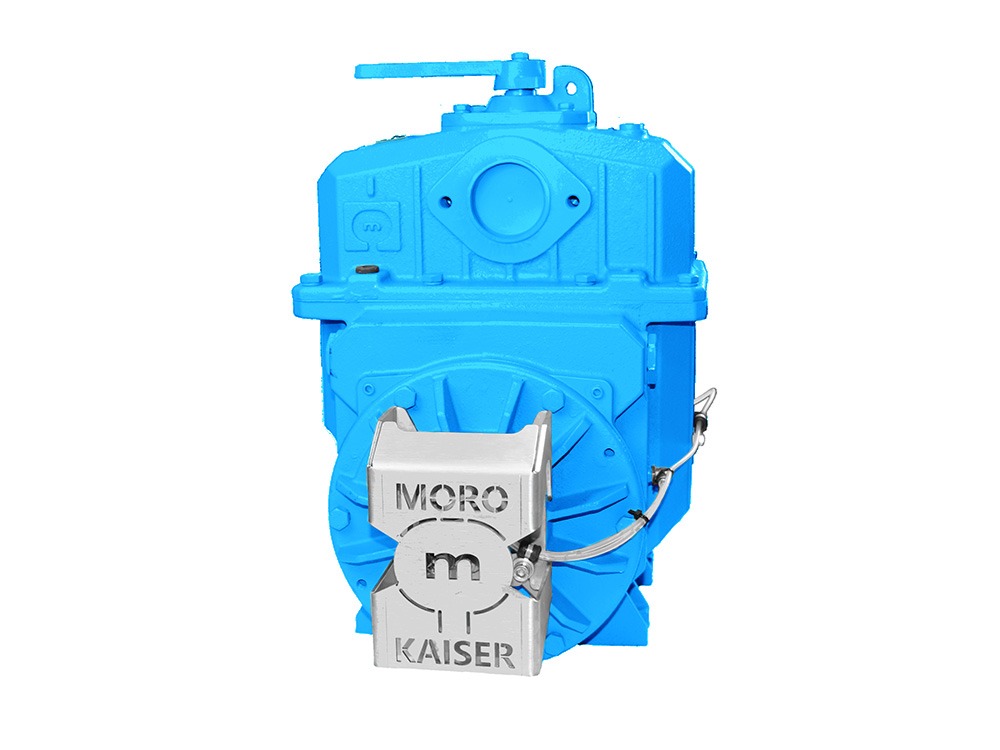

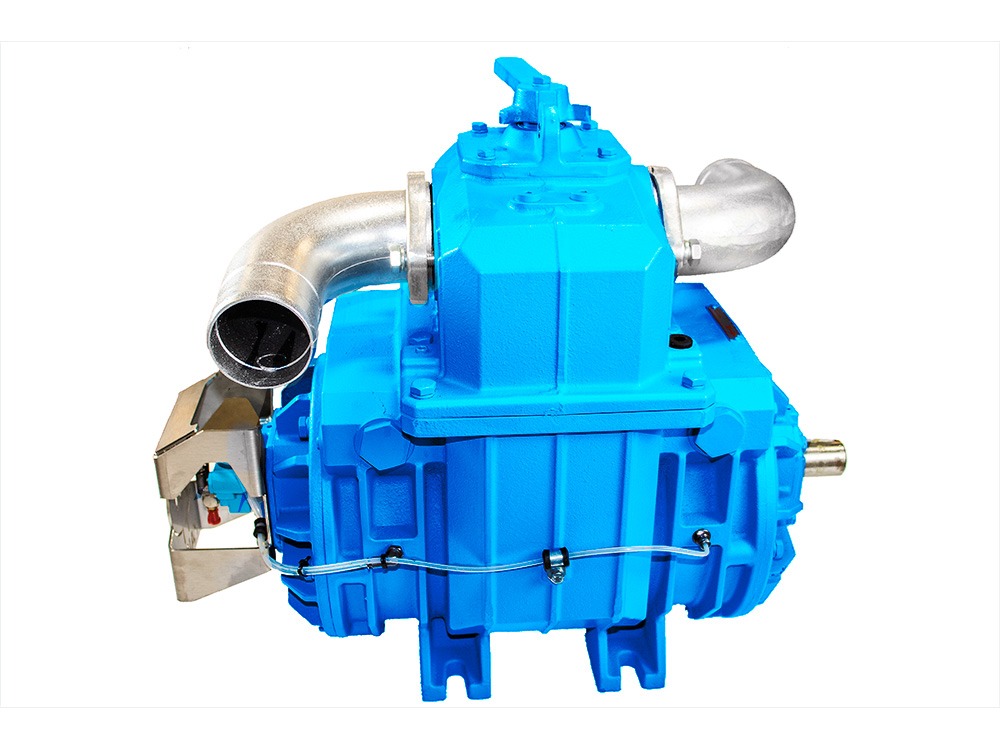

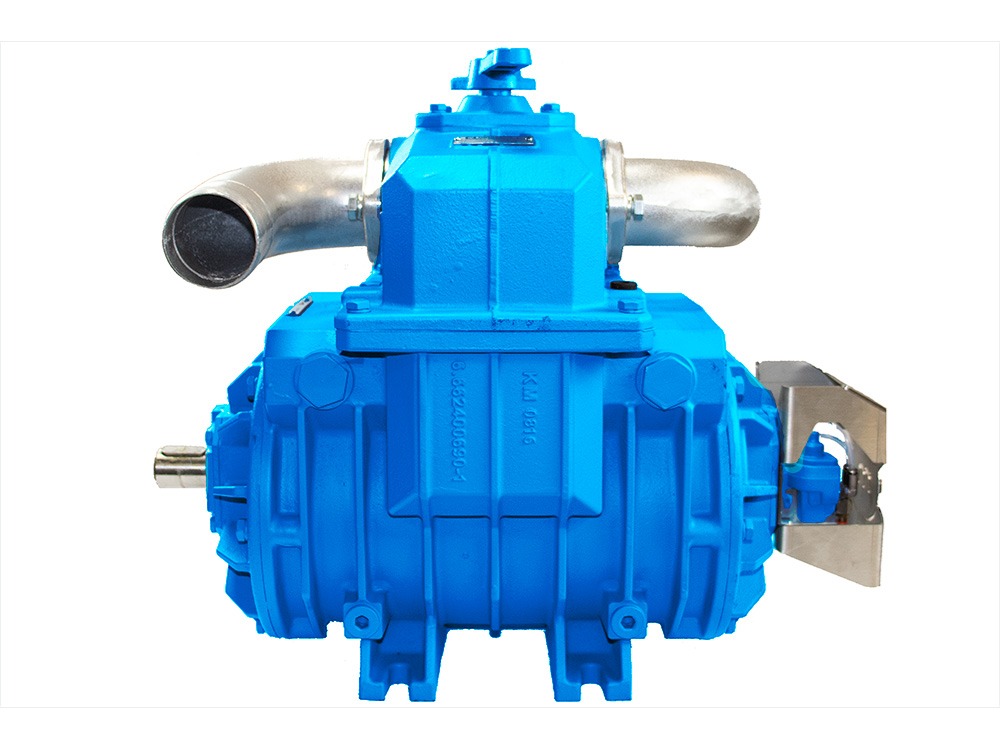

Moro PM70A 332 Air Cooled Pump

Moro PM70A 332 Air Cooled Pump

Moro air cooled vacuum pumps are designed and built for low maintenance, long life and trouble-free service. Air cooled vacuum pumps are used in a variety of industries and field applications to pump any noncombustible liquid.

CCW rotation: Part#: 6.211003430-1
CCW rotation: Part#: 6.211003440-1
CCW rotation (540 RPM): Part#: 6.211003440-1

$2,743.00 USD

Product #: 6.211003430-1



Ships in 1 to 2 business days.

Customers Also Viewed

FEATURES

  • Large, open ported manifold, design reduces noise and air friction
  • High performance, Kevlar vanes with visual inspection ports in casing
  • High quality Viton oil seals - longer life than traditional oil seals
  • Low rotating speed leads to longer pump life
  • Sealed bearings - no grease points
  • 29 psi positive pressure capability
  • Direct feed, sealed oiling system
Specification Unit Value
Free air capacity cfm 332
Air capacity at 15" Hg/50% vacuum cfm 241
Max. Vacuum Hg (in.) 28
Max. Pressure psig 29
Power required at 15" of vacuum hp 12
Power required at max. pressure hp 31
Rotation speed rpm 1100
Oil tank capacity quart(us) 4
Oil consumption gal (US)/Hr 0.046
Sound pressure at 7 meters (23 ft) 60% vacuum dB 78
Hose in 3
Flange in -
Weight lbs 309
R.P.M. Free
Air Flow
Performance
@15" Hg.
Suggested
Tank Size
1400 322 cfm 241 cfm 1000-3000 Gallons
1250 288 cfm 215 cfm
*1100 253 cfm 189 cfm

*Recommended R.P.M.
