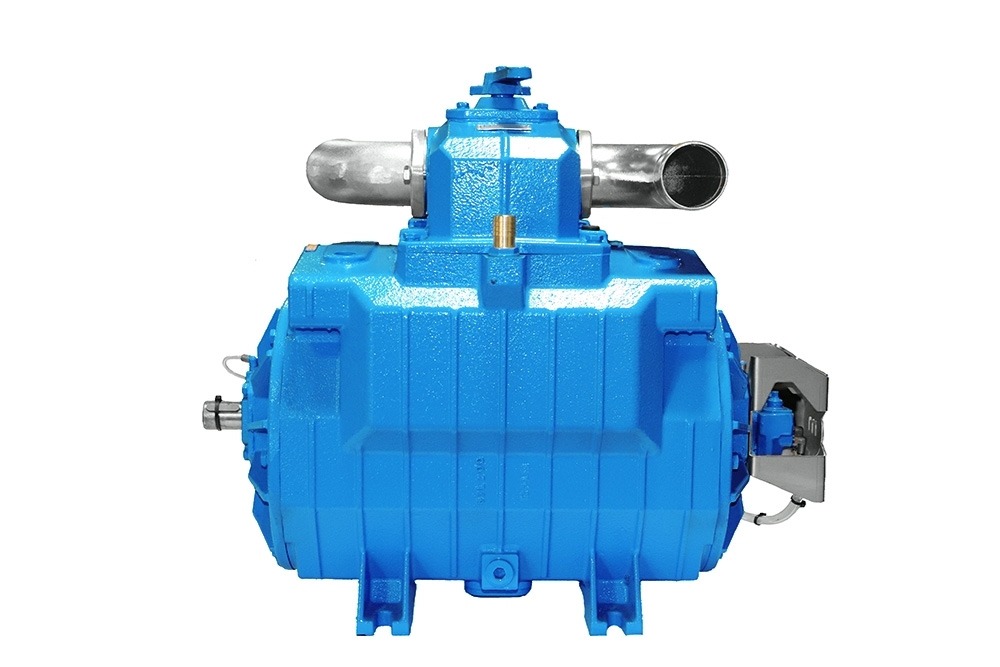

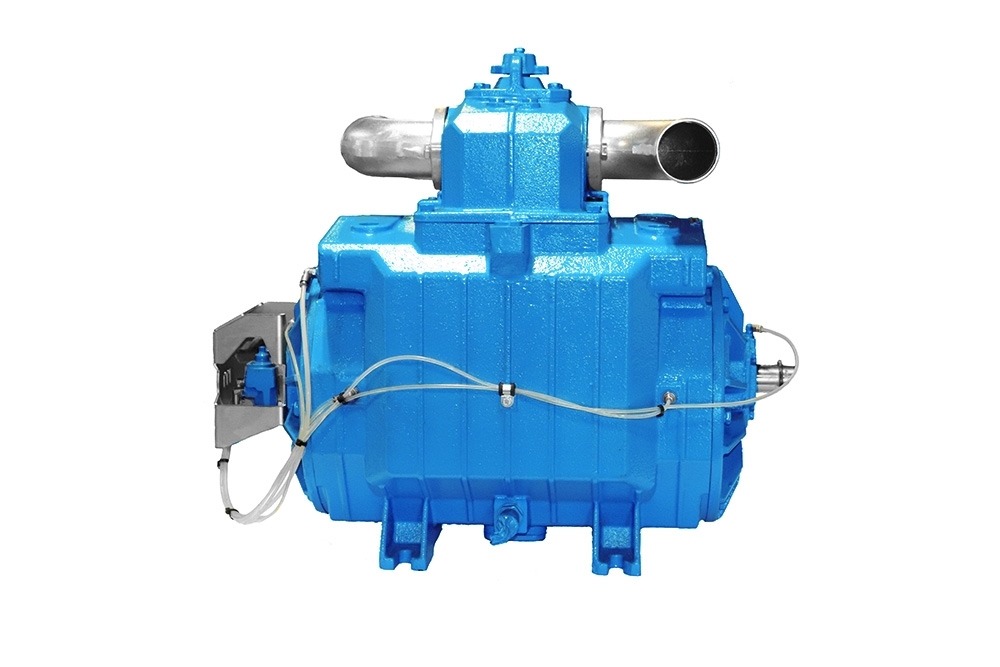

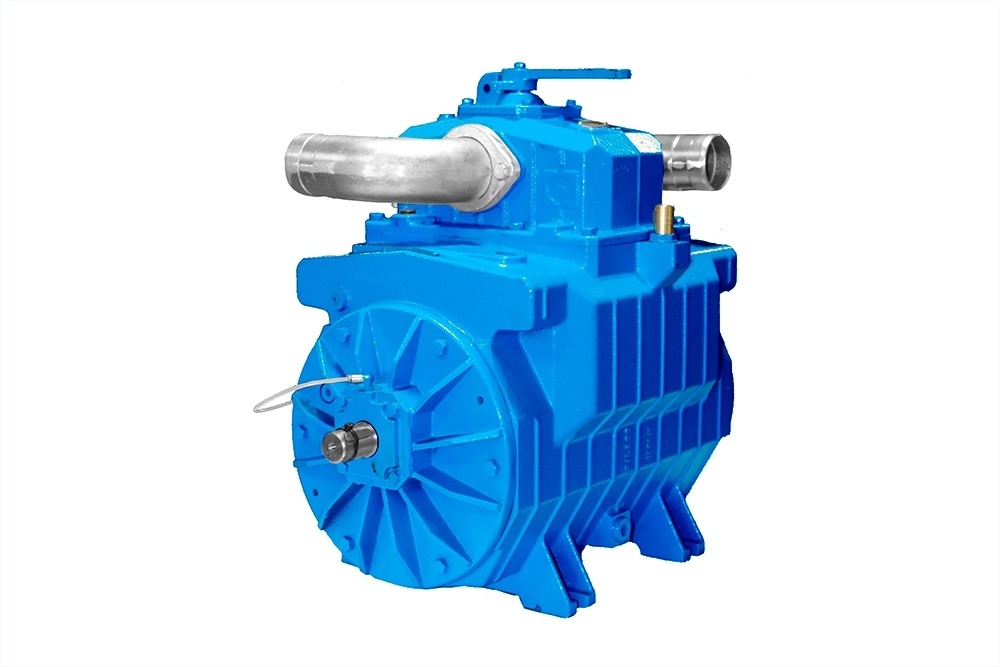

Moro water cooled vacuum pumps are designed and built for low maintenance, long life and trouble-free service for tough industrial applications. Liquid cooled vacuum pumps are used in a variety of industries and field applications to pump any noncombustible liquid.
CCW rotation: Part#: 6.211004920-1
CW rotation: Part#: 6.211004950-1
Product #: 6.211004920-1
$5,513.00Ships in 1 to 2 business days.
FEATURES
Specification | Unit | Value |
Free air capacity | cfm | 579 |
Air capacity at 15" Hg/50% vacuum | cfm | 554 |
Max. Vacuum | Hg (in.) | 28 |
Max. Pressure | psig | 29 |
Power required at 15" of vacuum | hp | 20 |
Power required at max. pressure | hp | 54 |
Rotation speed | rpm | 1100 |
Oil tank capacity | quart(us) | 4 |
Oil consumption | gal (US)/Hr | 0.053 |
Sound pressure at 7 meters (23 ft) 60% vacuum | dB | 80 |
Hose | in | 3/4 |
Flange | in | - |
Weight | lbs | 645 |
R.P.M. | Free Air Flow | Performance @15" Hg. | Continuous Vacuum | Suggested Tank Size |
1400 | 630 cfm | 554 cfm | 24" Hg | 2000-6000 Gallons |
1250 | 562 cfm | 486 cfm | ||
*1100 | 496 cfm | 388 cfm |
*Recommended R.P.M.
�
