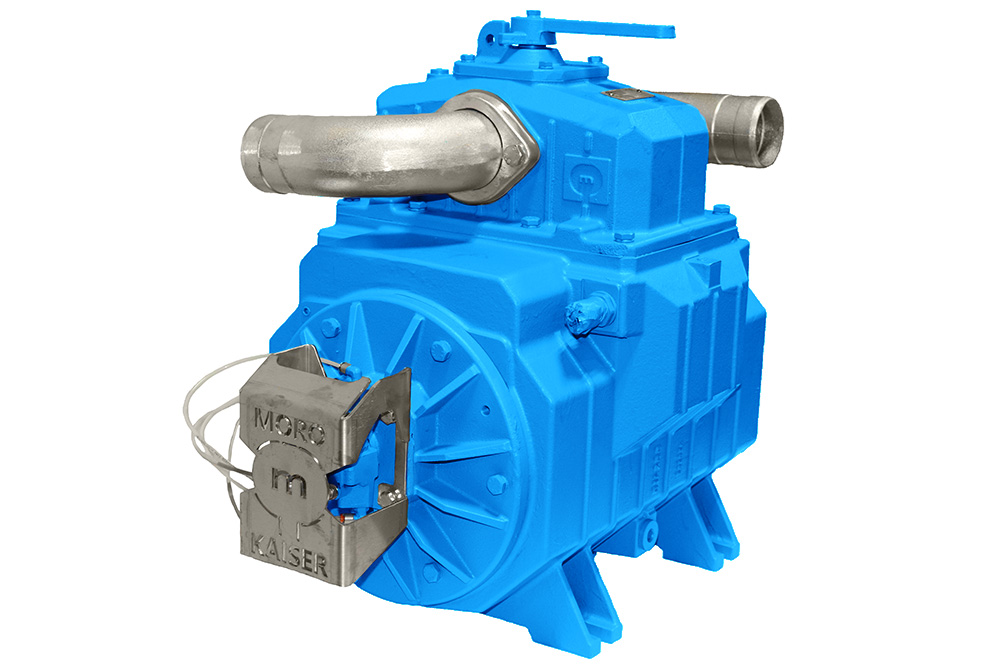

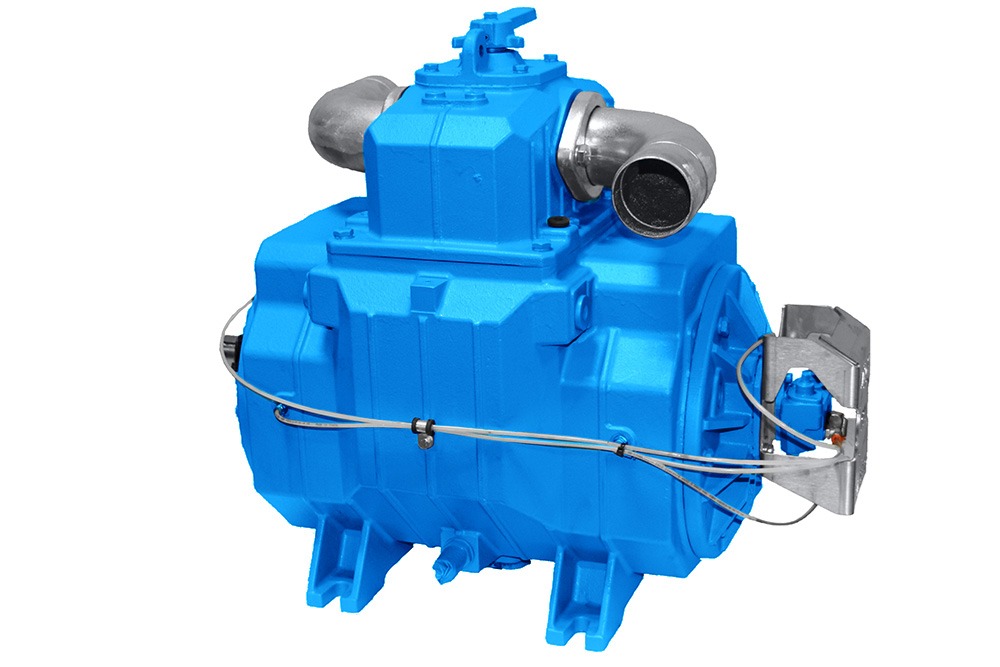

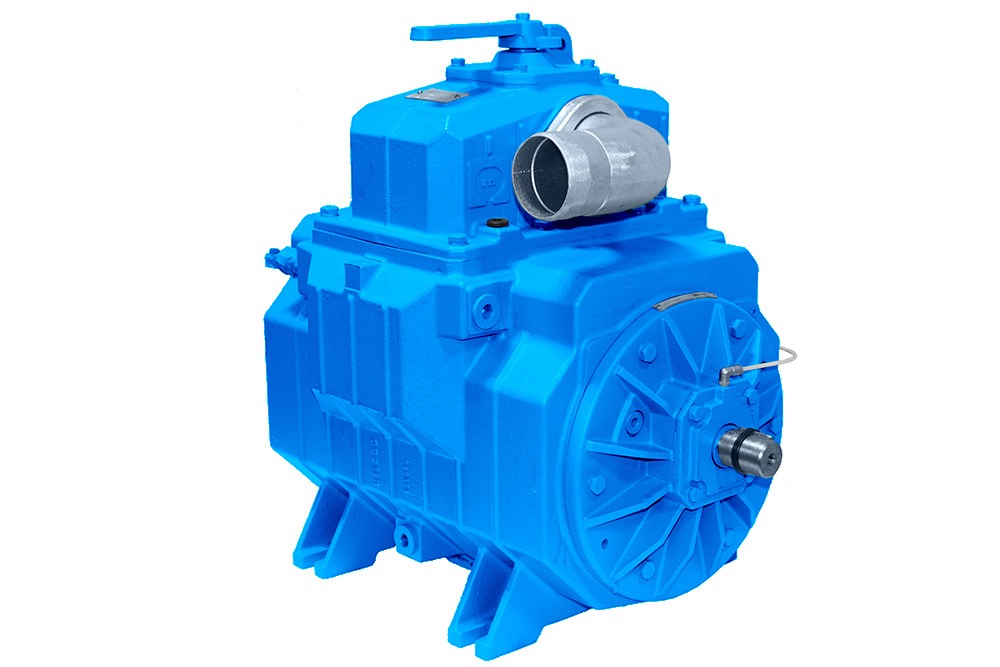

Moro PM80W 424 CFM Liquid Cooled Pump

Moro water cooled vacuum pumps are designed and built for low maintenance, long life and trouble-free service for tough industrial applications. Liquid cooled vacuum pumps are used in a variety of industries and field applications to pump any noncombustible liquid.

CCW rotation: Part#: 6.211004910-1
CW rotation: Part#: 6.211004940-1

$4,513.00 USD

Product #: 6.211004910-1



Ships in 1 to 2 business days.

Customers Also Viewed

FEATURES

  • High performance, Kevlar vanes with visual inspection ports in casing
  • High quality Viton oil seals - longer life than traditional oil seals
  • Low rotating speed leads to longer pump life
  • Sealed or oiled bearings - no grease points
  • Direct feed, sealed oiling system
Specification Unit Value
Free air capacity cfm 424
Air capacity at 15" Hg/50% vacuum cfm 312
Max. Vacuum Hg (in.) 28
Max. Pressure psig 29
Power required at 15" of vacuum hp 14
Power required at max. pressure hp 40
Rotation speed rpm 1100
Oil tank capacity quart(us) 4
Oil consumption gal (US)/Hr 0.048
Sound pressure at 7 meters (23 ft) 60% vacuum dB 79
Hose in 3
Flange in -
Weight lbs 480
R.P.M. Free
Air Flow
Performance
@15" Hg.
Suggested
Tank Size
1400 417 cfm 312 cfm 2000-4000 Gallons
1250 372 cfm 279 cfm
*1100 328 cfm 245 cfm

*Recommended R.P.M.
