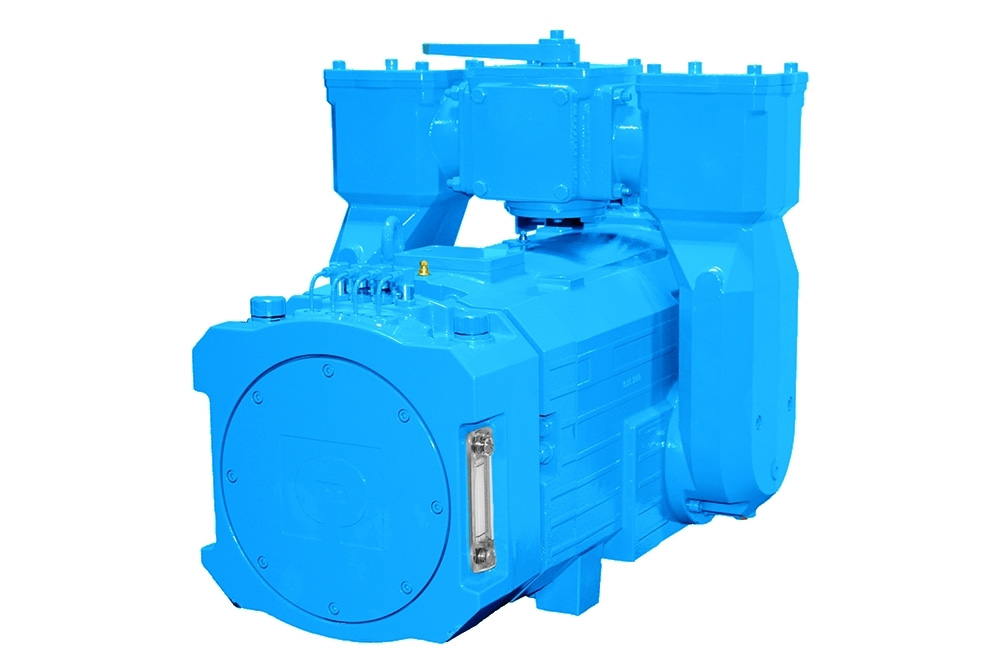

Moro PM3000 1001 CFM Liquid Cooled Pump

Moro PM3000 1001 CFM Liquid Cooled Pump

Moro liquid cooled vacuum pumps are recommended for heavy duty continuous use applications. Some models have a unique liquid cooling system for the rotor, maintaining cooler temperatures inside the pump. Plus, the principle of positive displacement rotary vanes guarantees a high degree of vacuum, making Moro liquid cooled pumps ideal for industrial use.

CCW rotation: Part#: 6.211004670-1
CW rotation: Part#: 6.211004690-1

Recommended for heavy duty continuous use applications.

Product #: 6.211004670-1

$14,963.00
Please call Stahly to place order.

Call for price 1-800-678-2459

Ships in 1 to 2 business days.

Customers Also Viewed

FEATURES

  • Sealed bearings - no grease points
  • Direct feed, sealed oiling system
  • Continuous pumping duty
  • Low rotating speeds lead to longer pump life
  • Integrated check valve, change-over valve and oiling system allow for ease-of-use and installation
  • Kevlar vanes
  • Field proven superior pump life
  • Industrial duty Viton oil seals for longer pump life
Specification Unit Value
Free air capacity cfm 1001
Air capacity at 15" Hg/50% vacuum cfm 857
Max. Vacuum Hg (in.) 28
Max. Pressure psig 29
Power required at 15" of vacuum hp 44.2
Power required at max. pressure hp 89.8
Rotation speed rpm 1200
Oil tank capacity quart(us) 13.2
Oil consumption gal (US)/Hr 0.066
Sound pressure at 7 meters (23 ft) 60% vacuum dB 79
Hose in -
Flange in 4
Weight lbs 1177
R.P.M. Free
Air Flow
Performance
@15" Hg.
Continuous
Vacuum
Suggested
Tank Size
1200 1000 cfm 857 24" Hg 3000-6000 Gallons

Moro PM3000 - Owners Manual
