Stahly ExtraLite Sprayer - Available for 30", 36" or 38" rows

STANDARD SPECS
4WD ExtraLite Tanks:
 650 to 1,000 gallon capacity, #4 finish 10 gauge, 304 stainless steel tank, baffled design, 16" manhole, with 10" fill opening. Stainless steel full V sump, 3/16" stainless steel skid, dual sight gauges, 60 gallon capacity stainless steel water flush-out tank with top sparger to clean heads, sides and baffles, stainless steel cat walks, 3" tank reload port.

Welded Skid: One piece 3/16" (33% thicker than 10 gauge used elsewhere) stainless steel design for strength and durability, boom system is directly attached to chassis frame.

Hypro Product Pumps and System: Hypro 9303C-GM12- 2" x 1.5" Hydraulically driven pump. All product plumbing throughout system is welded 100% 304 stainless steel plumbing for efficient product flow and no corrosion. 2" sparger line and 2" auxiliary bypass line, with a strainer for each boom section. cab controlled electric 2" SS KZ valve in bypass line,

Hydraulic System: Direct mount tandem gear bushing pump, front section operates booms, rear section operates a hydraulic motor driven product pump. 50 or 75 gallon reservoir with site gauge, baffle, vent and filter, hydraulic cooler options are available.

Std. Boom: 45 to 65' Boom with adjustable height of 42'' with tip break away and accumulator shocks . 1" or 1 1/2'' stainless steel boom pipes, individual boom section control, 3 Section 1 1/2" motorized ball valve shut-off with S.S. ball and stem (five on 50/90). Air powered boom tube clean-outs. Air operated fence row nozzle. Metal is sandblasted, Varaprimed and painted with Polyurathane paint for a lasting finish.

Hydraulic Boom Controls: 4-way joystick controls for reliability and easy access.

Foam Marker: Optional Stainless steel, 45 gal. (170 L) capacity. Foam is made outside of the tank for more consistent foam and more acres.

OPTIONAL EQUIPMENT

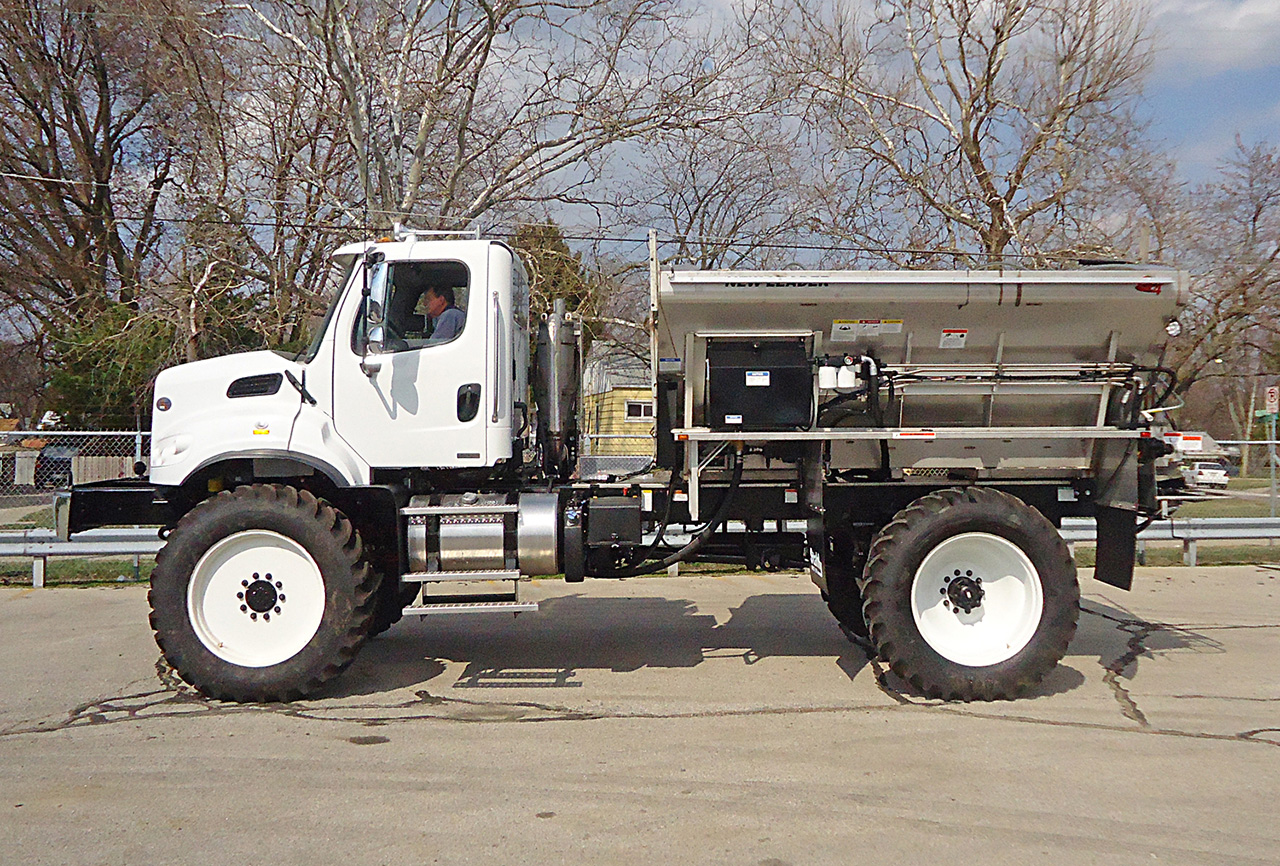

Combo Units: "Quick-Change" combo option for adding a dry spreader. Enables tank and booms to come off as one. Able to be switched over in two hours with our exclusive manifold disconnects everything in two seconds.

Flotation, Row Crop or Both Sets of Tires: - Available for 30", 36" or 38" rows

Booms: 45', 50' 55', 65', 75', 80', 85', 60/80' and 65/90' with adjustable height of 42".

Nozzle Spacing: 10", 15", 20", 30", PrePost with two sets of nozzles 3/4" for Flood Jet tips and 3/8" for TeeJet on same stainless steel boom tube.

Nozzles: CP adjustable flood or flat fans, single or triple 5-way bodies, TeeJets, Dribble nozzles, Spraying System Air Powered Chem Saver. No drips or Richway nozzle stops.

Parallel Swathing Systems: Raven, TeeJet, and Trimble. Option: Full hydraulic steer truck axle with orbital motor disconnects.

Higher Volume Pumps: Numerous

Tire/Rim Packages: Various flotation and/or post tire packages and set ups.

Chemical Eductor: Available in poly or stainless steel for liquid or dry chemicals.

Controls: Raven, TeeJet and Trimble. Raven and Trimble Steer-hydraulic or manual.

Hand Washer: Available in poly or stainless steel tank with ball valve.

Acid Sprayers: 316 stainless, acid resistant hose and poly fittings.

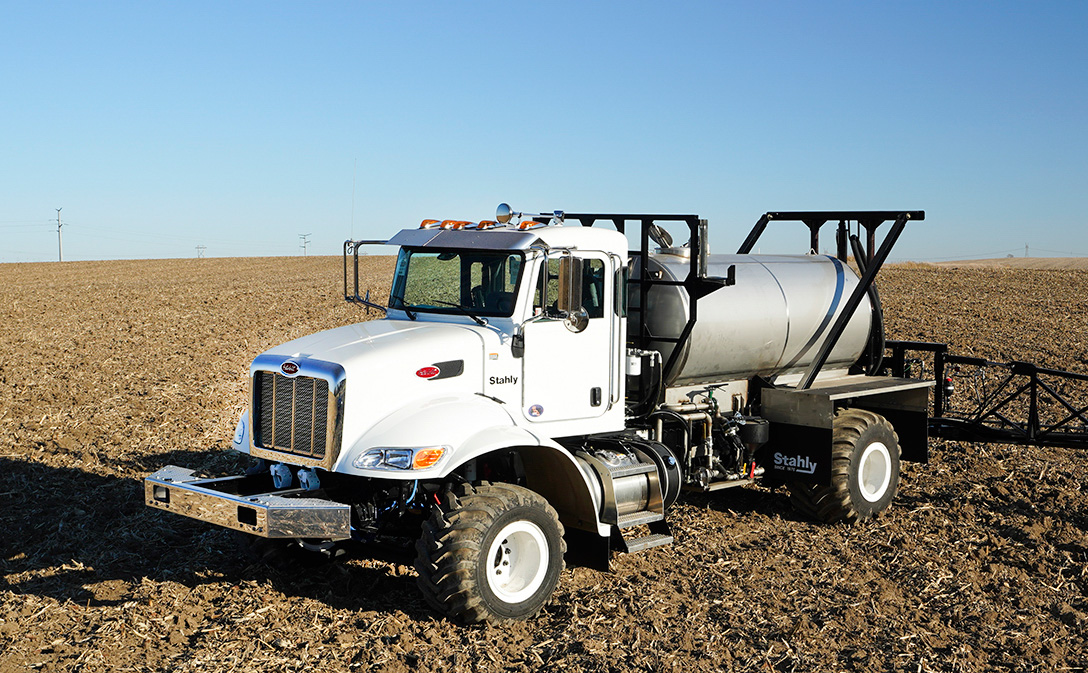

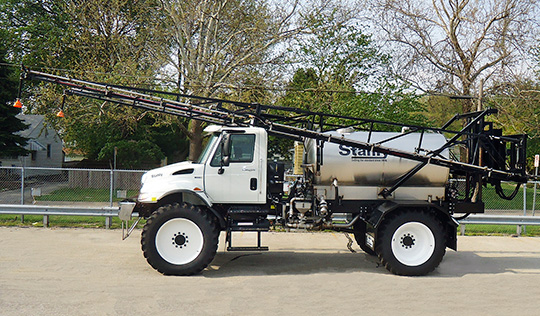

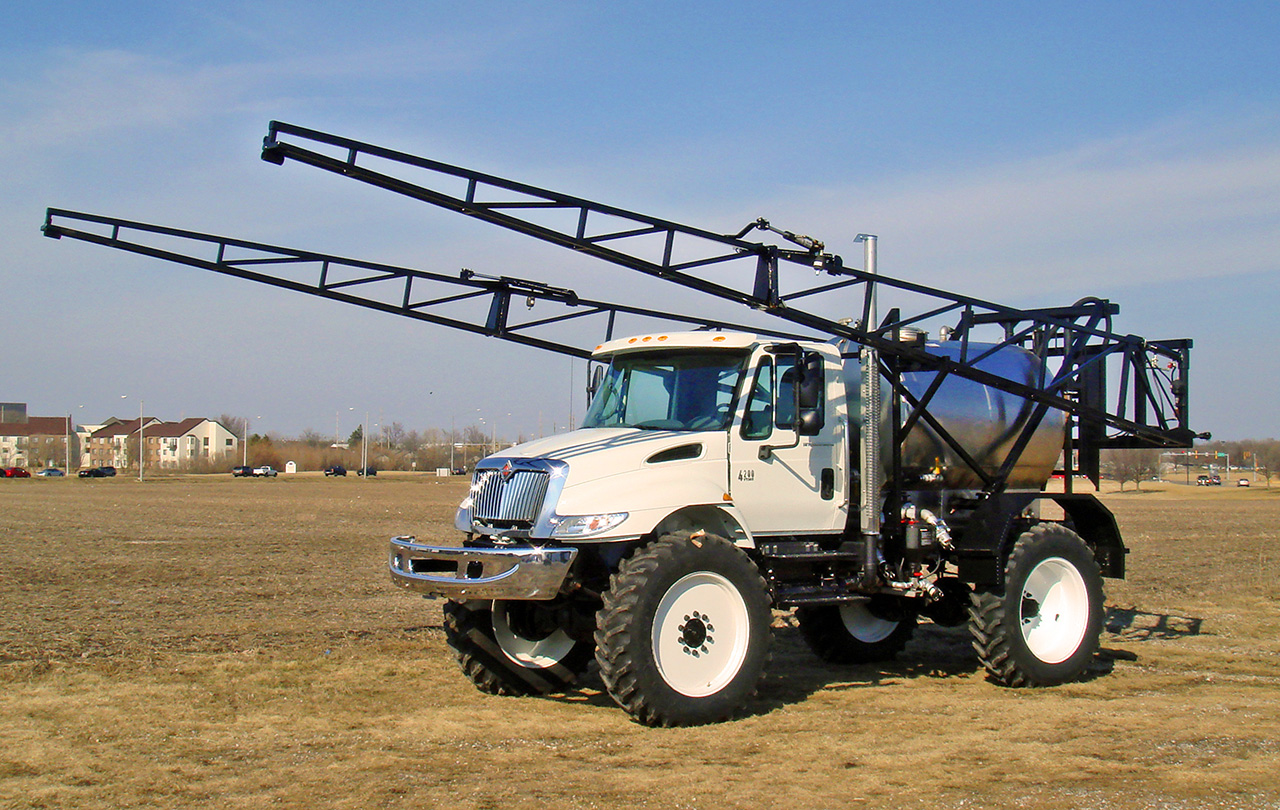

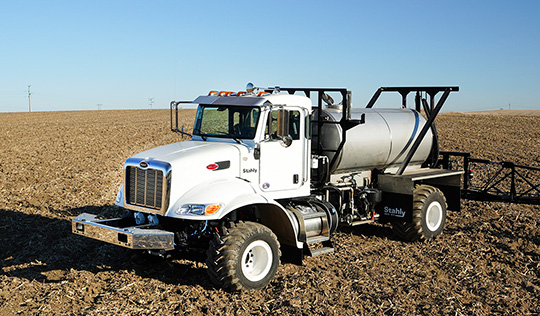

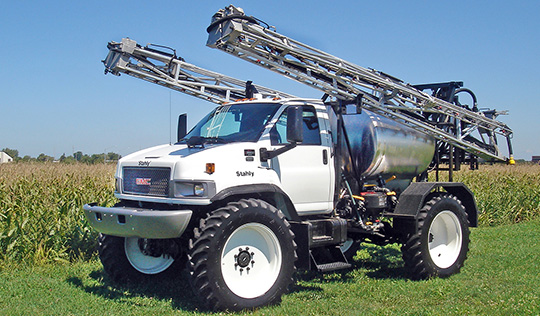

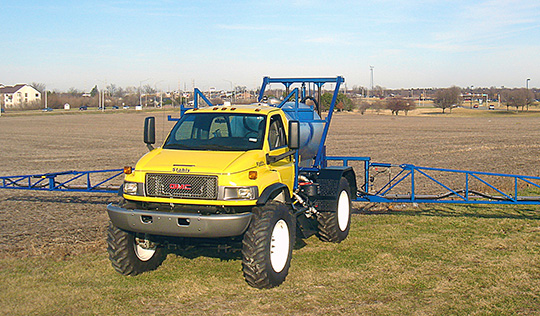

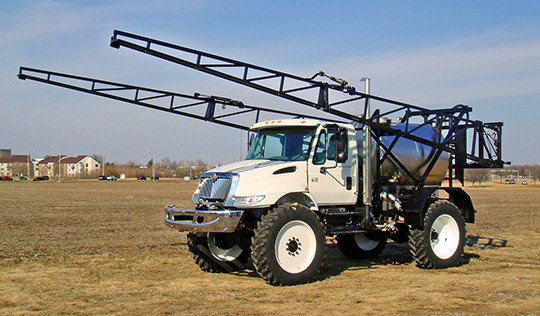

Stahly ExtraLite Sprayer Additional Photos
